RO Sea Water

RO Sea Water
RO Sea Water
Product Code : 24
Product Description

Since our inception in the year 2001, we are engaged in manufacturing, exporting and supplying RO Sea Water. This RO system is made in accordance with prevailing norms and regulations of this domain. It is used in the areas where ground water is not available but people have to use sea water to drink. Quality approved at various levels of manufacturing, our offered system is made available to the clients at best market price. RO Sea Water offered by us is made available to clients at most competitive price range.


  • Optimum operational efficiency

  • Reliable treatment

  • Easy to operate

  • User-friendly controls

Other Details:

System Application: Sea Water RO systems are designed for areas that have no or limited surface water or groundwater may choose to desalinate seawater to obtain drinking water. The Marine Industry converting Sea Water to Pure Drinking Water for Yachts and commercial Freightliners worldwide. Sea water reverse osmosis is the most common method of desalination, especially in Middle East countries.

Over View:

Sea Water Commercial Grade Reverse Osmosis Systems for Land Based Applications starting from 1,500 GPD up to 100,000 GPD (Gallon Per Day) using top quality components. Our systems are delivered complete with all plumbing included ready to produce water immediately after installation.


Unlike osmosis, which is the natural tendency of pure water to flow through a membrane into impure water, reverse osmosis is achieved by applying very high pressure to seawater to counteract the osmotic flow? Thus, seawater is forced through a semi-permeable membrane, which removes all the dissolved solids and produces fresh, potable water on the other side. This method rejects at least 98% of salts, contaminates, and pollutants from seawater.

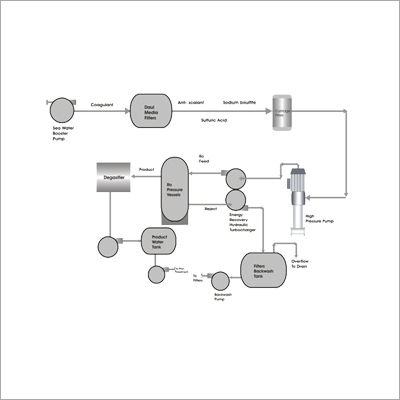

Sea Water Treatment Scheme:

    Salt or brackish water first enters into the RO plant via a through-hull fitting and is filtered through the Sea Strainer.

    Feed water is then boosted to 30 psi by the Booster Pump and filtered through 25 and 5 micron Pre-filters.

    Oil, if present, is then separated and removed by the Oil/Water Separator.

    Filters then remove sediments and suspended solids from the feed water prior to entering the High Pressure Pump.

    A Low Pressure Switch shuts down the RO in the event of low flow conditions, preventing cavitations in the High Pressure Pump.

    The High Pressure Pump supplies the required force to drive the feed water through the semi-permeable Reverse Osmosis (R.O.) Membrane.

    An automatic high pressure safety relief valve protects the water maker if pressure exceeds recommended levels.

    The fresh water produced flows out of the Reverse Osmosis Membrane where it is up to 99.2% free of salts, minerals, and other ions.

    It then passes into the Product Flow Meter where the amount of potable water produced per minute is registered.

    Next, the Salinity Probe registers the salt content of the product water.

    If the water is good quality, it passes through the 1 Micron Carbon Block Post-Filter and ½ Micron Ceramik Post-Filter, which purifies the water of unpleasant odors and taste.

    Finally, the last filtration process is completed by an optional Ultraviolet Sterilizer where 99.8% of all micro-organisms, including viruses and bacteria are destroyed.



    Sea water RO membrane

    High pressure pump

    SS 316L or fiberglass sediment filter housing

    High pressure control regulator

    High-pressure safety cut-off control switch

    Low-pressure feed water cut-off control switch

    Pressure Control Valves

    Auto/manual flushing system

    Digital TDS meter

    Glycerin filled stainless steel pressure gauges

    High-pressure hydraulic hoses with corrosion

    Resistant hose end fittings

    SS-316 grade Pressure Vessels

    Heavy duty SS-316 grade piping

    PVC & Nylon low pressure piping

    Product water flow meter

    Level control ON/OFF switch

    Auto flush with solenoid valve

    PSI working pressure

    Flow meters for pure/waste water

    Water quality indicator

    Electrical control Panel

    Overload breakers

    UV sterilizer
